The Casting Cooler cools these motor blocks from 400 °C down to 100 °C. A radiation pyrometer measures the temperature of the parts.

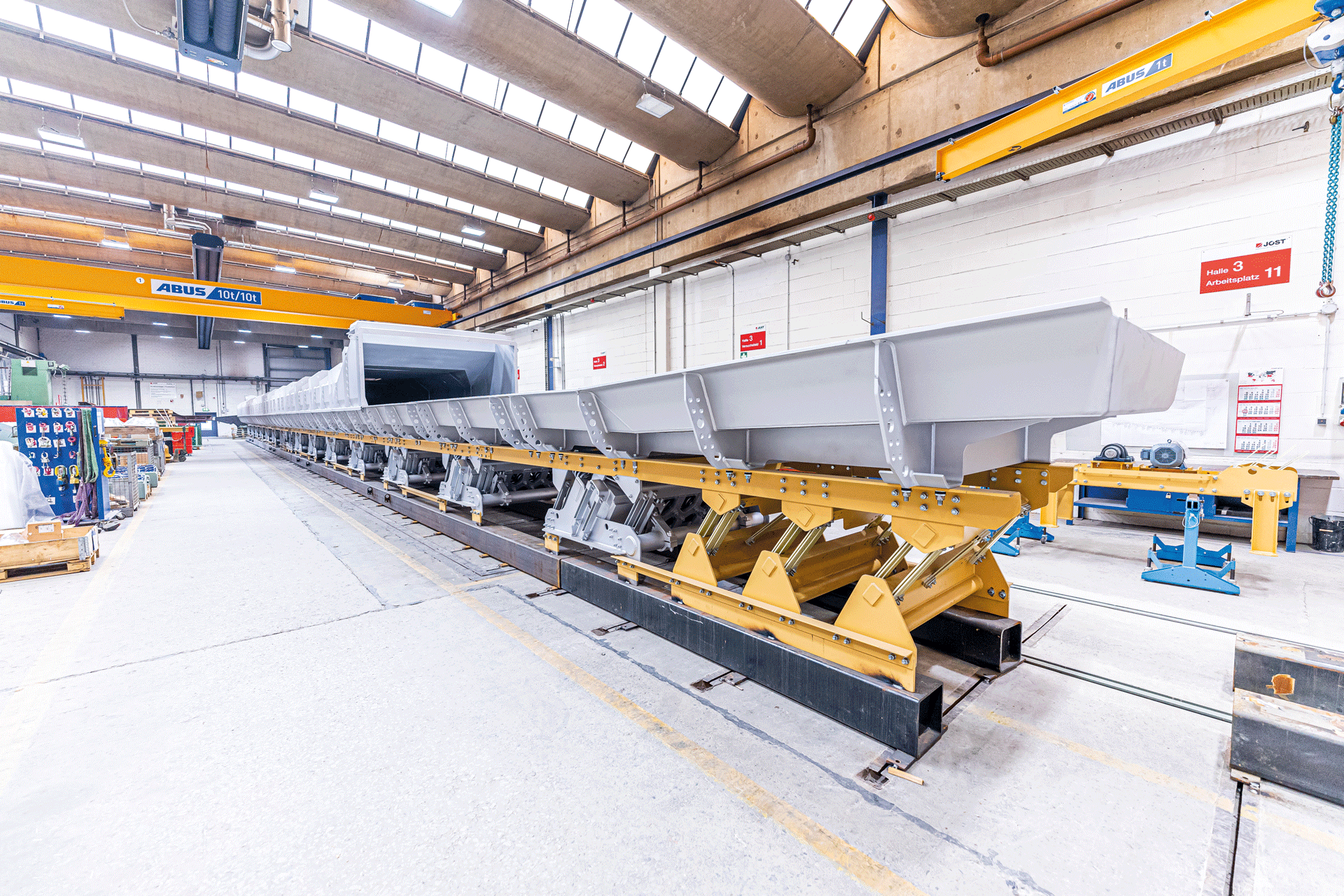

This year, JOEST manufactured a 42-meter-long Casting Cooler for a client. The cooler was designed as a mass compensated resonance machine for the shock-free cooling of truck motor blocks in a continuous production flow. It is located after a green sand molding plant that produces 60 parts an hour with a weight of up to 550 kg per piece. The Casting Cooler cools these motor blocks from 400 °C down to 100 °C. A radiation pyrometer measures the temperature of the parts.

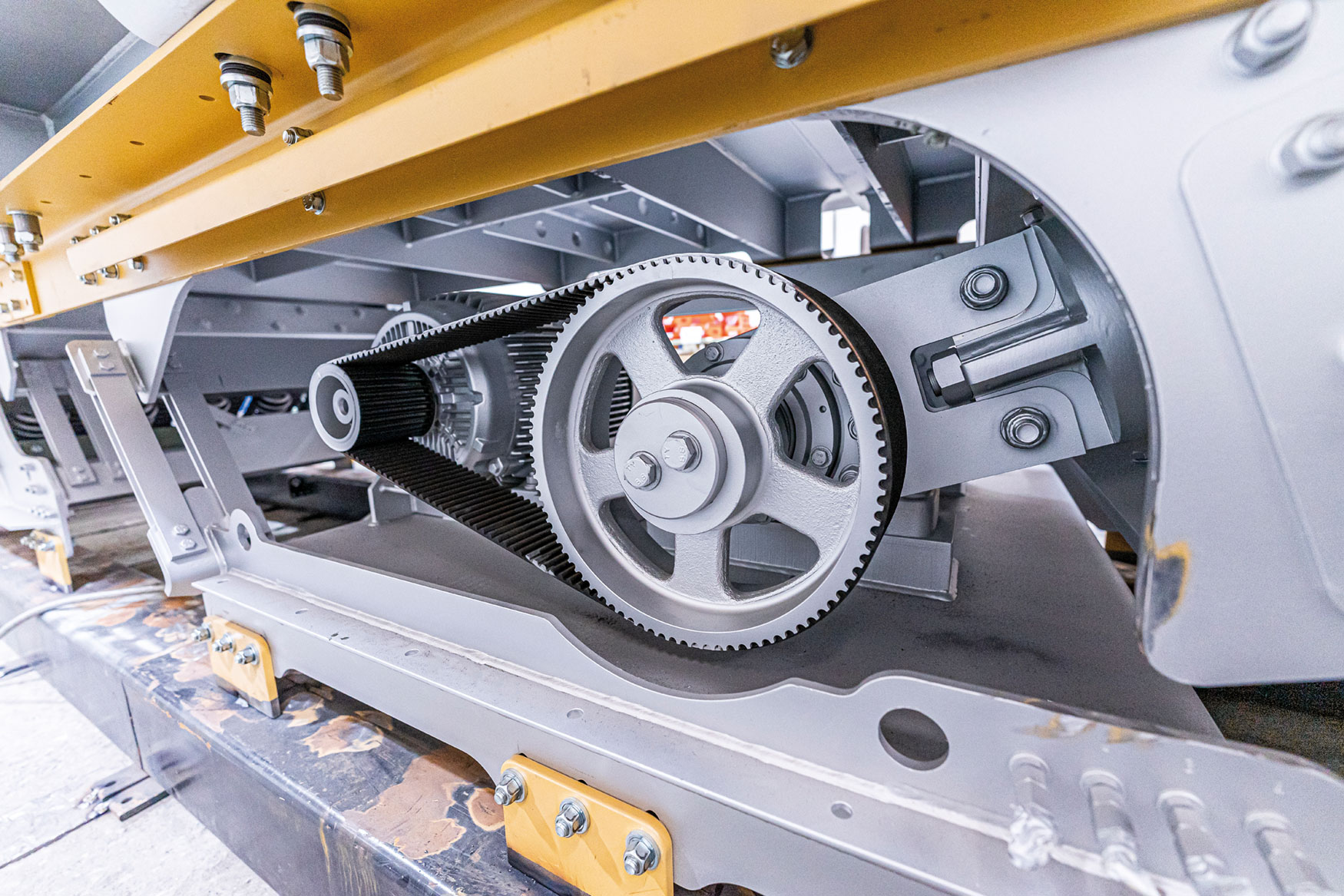

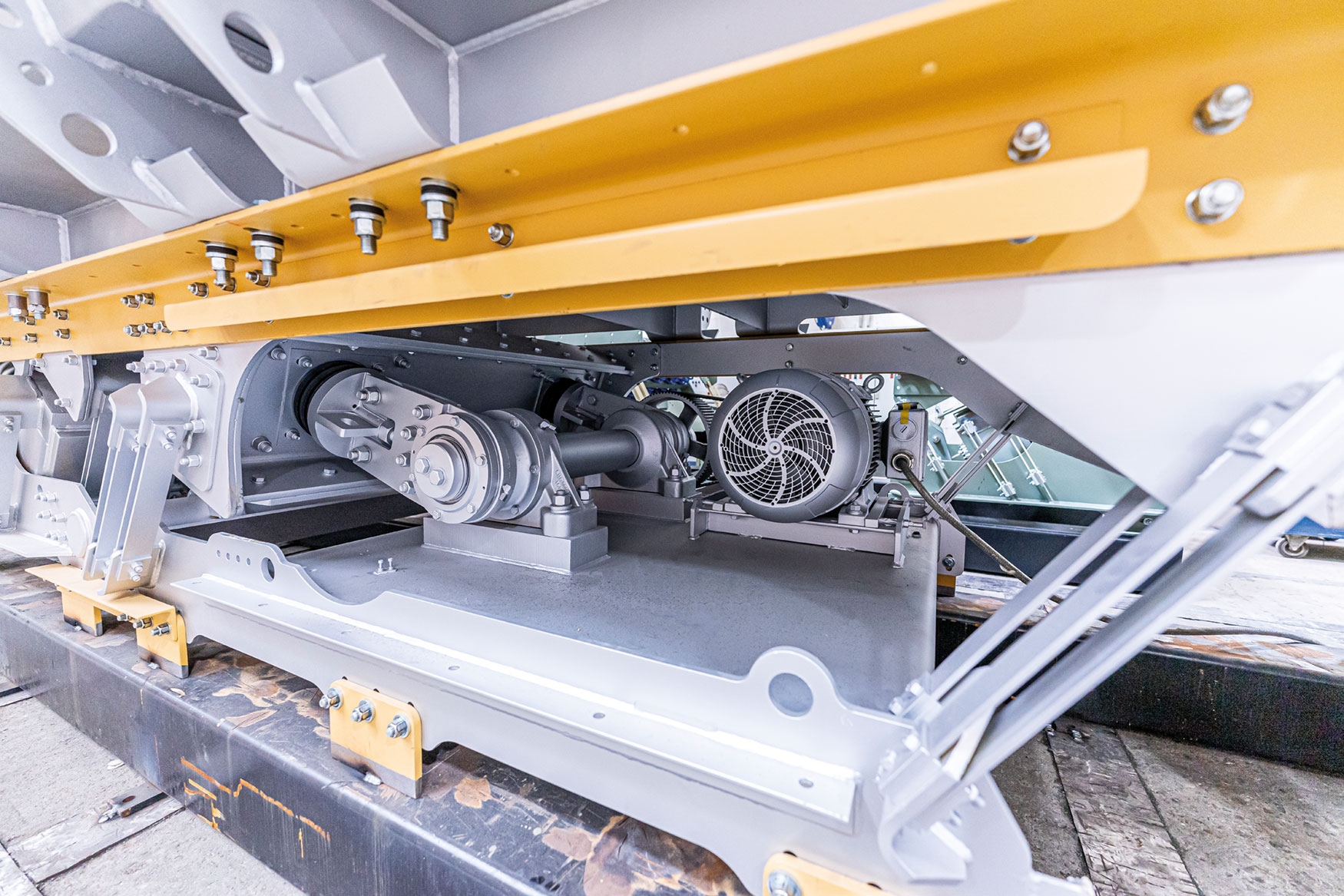

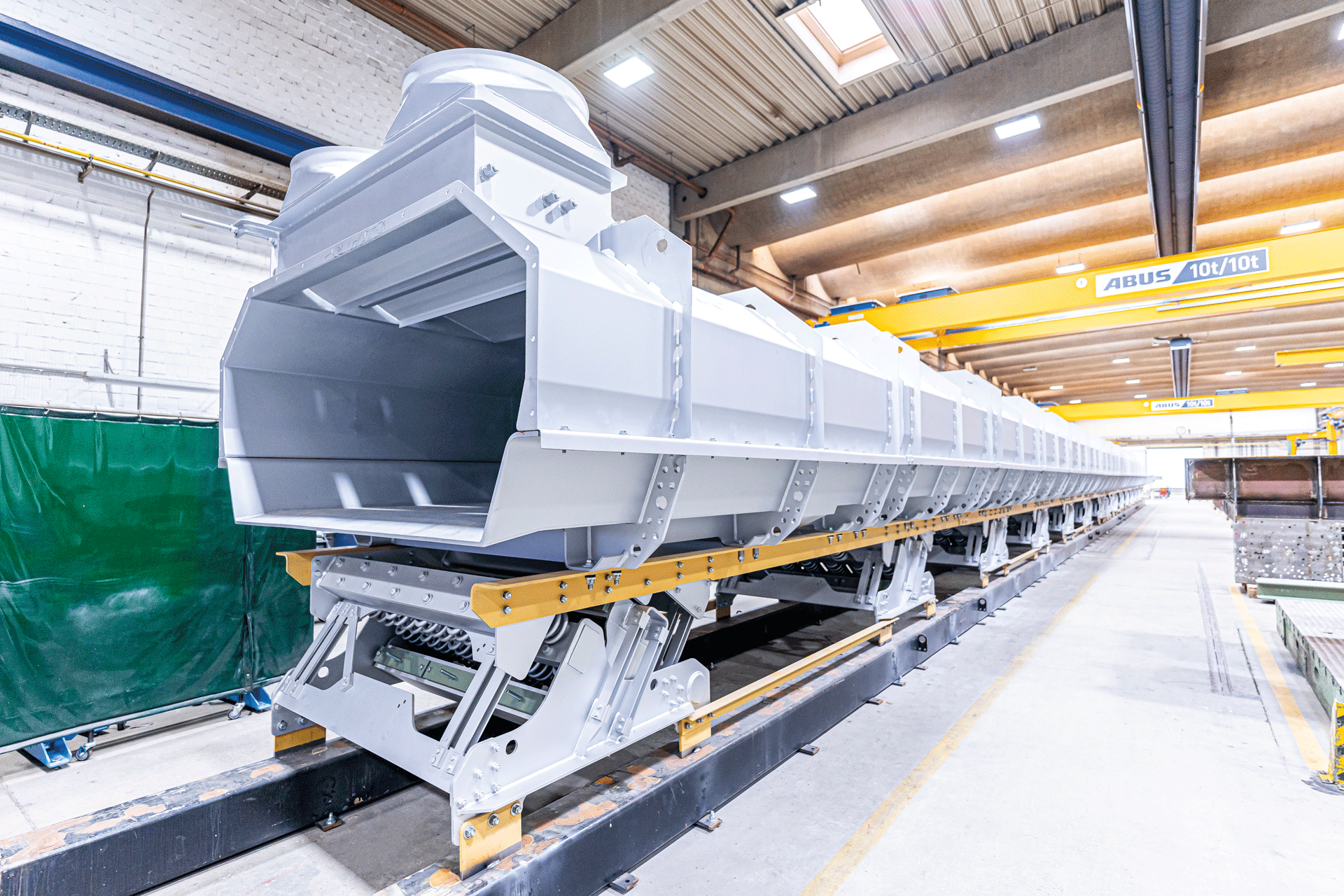

From a machine dynamics standpoint, the Casting Cooler is equipped with active, synchronized vibration dampers. They are sub resonantly harmonized and feature an eccentric slider-crank drive. Open at the feed and discharge ends, the machine has a near airtight hood that forms an ideal flow channel. The air injection nozzle creates a strong air flow through this channel. The counter flow principle enables a direct convective heat exchange between the casting parts and the cooling air, resulting in a shock-free cooling process. The preheated air that has already passed by several parts reaches the hottest casting parts at the hot feed end of the cooler. Pulse-width modulated water injectors regulate the moisture of the processing air. JOEST designed the optimal solution for this client by considering the entire process including an air-cooling system and planning the machine accordingly. The design was tested for its operational safety using a precise calculating tool. This enabled our engineers to achieve the best possible level of efficiency. Furthermore, the machine is equipped with very reliable modules such as the damper stations and only transfers small residual forces into the foundation. Natural flexural frequencies do not occur within the system and the massive steel design lacks concrete fillings, which ensures an outstanding durability. The modular design also allows the machine to be divided into sections for easy transportation.
Cooling
The Video of the 42 Meters Casting Cooler
